Note |
HAM E-Bike will not be legal to use after the speed limit is lifted. |
E-BIKE SYSTEM: |
|
| Model | Ham |
| Battery | 2x20Ah/48V lithium battery |
| Battery removable | yes |
| Range up to | 120-160KM+ |
| Motor | 2x48V 750W |
| Motor torque | 80Nm+80Nm |
| Top speed | 48 km/h+ |
| Riding mode | Throttle Mode / Pedal assist mode / Cruise control mode / Push mode |
EQUIPMENT: |
|
| Display | Color LCD display |
| Sensors | Speed Sensor |
| Mechanical gear | Shimano 7-speed |
| Charger | EU standard 4.0A |
| Tire | Arisun 20x4.0'' |
| Headlamp | 280 Lux |
GEAR & BRAKE: |
|
| Brake | Hydraulic disc brakes 180MM |
| Brake lever | Aluminum alloy brake lever with engine stop switch |
| Gear lever | SHIMANO Altus 7-speed |
| Crankset | 48T, 170mm |
FRAME: |
|
| Frame | 6061 Aluminum alloy |
| Size | 17 inch |
| Shock absorber | Front fork shock absorber 100mm + rear spring shock absorber 30mm |
PRODUCT INFORMATION: |
|
| Maximum Load | 200KG |
| Suitable Height | 165-190CM |
| Product weight (include battery) | 42kg |
| Waterproof level | IP56 (can be used in the rain) |

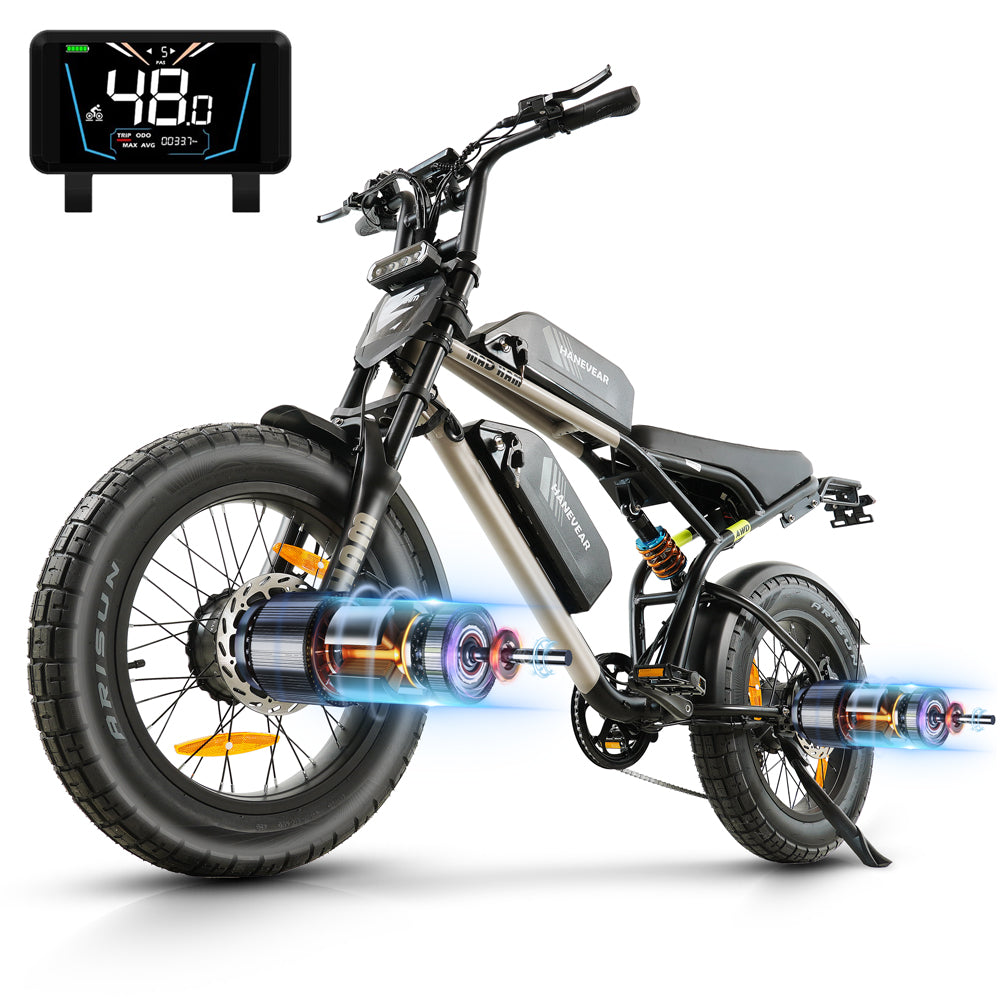

Dual Battery + Dual Motor - Retro Style. Modern Power. Built for the Streets.

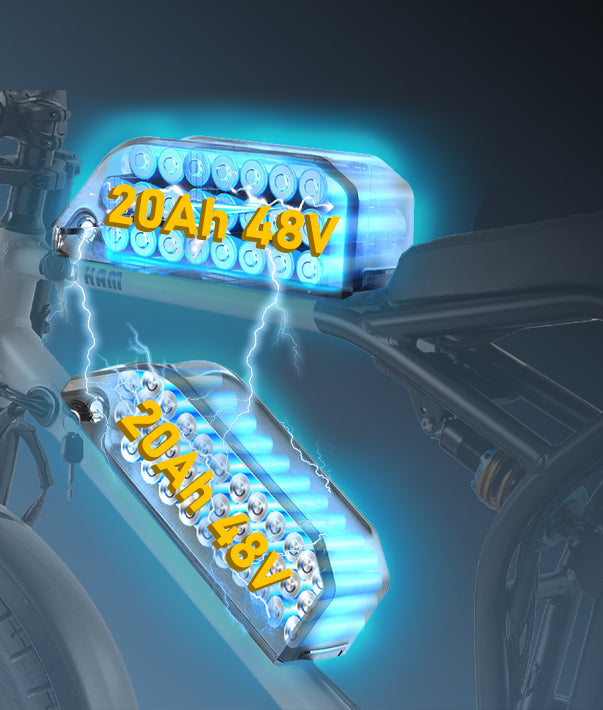

Upgraded 2x20Ah batteries, Max range of 120–180km

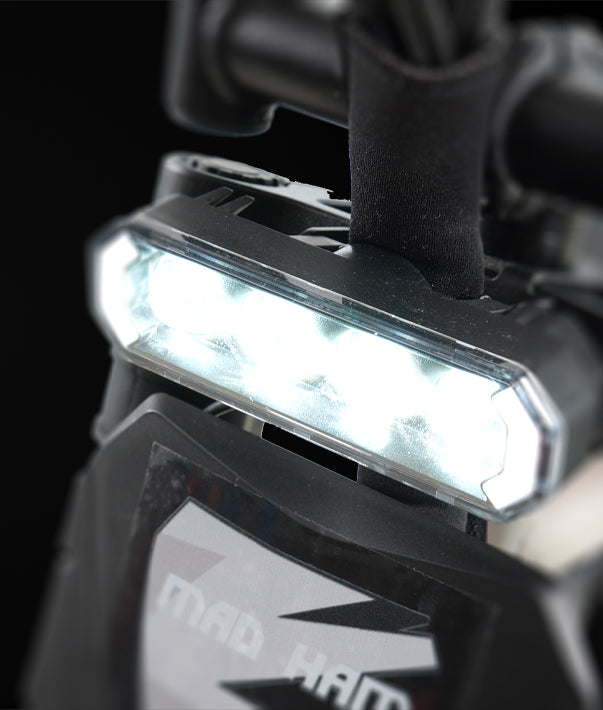

LED Headlight Enhanced visibility for safe night riding.
Dual Suspension Front and rear shock absorption for a smoother ride.
Smart LCD Display Easily track speed, battery, and trip data.
Hydraulic Brakes 180mm disc brakes for strong, precise stopping power.

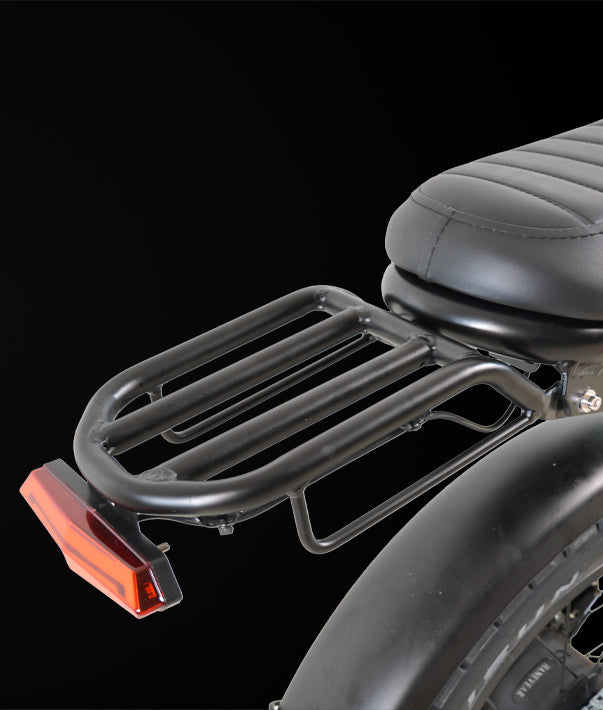

Upgraded rear rack, 25kg load capacity.
Max Torque |
Max Speed |
| 160N.m | 45KM/H |
ECO Mode |
40Ah 48V |
| 120-180KM | Lithium Battery |
41KG |
180KG |
| Bike Weight | Max Loading |
In the city, on gravel, and everywhere in between.
Total length: 182cm
Handlebar Height: 112cm
WheelBase: 124cm
Seat Height: 82-85cm
Chain Stay Length: 50cm
Handlebar Length: 69cm
Wheel Diameter: 61cm
Saddle to crank: 51cm
Saddle length: 58cm
N.M: 44KG
G.M: 53.5KG
Single battery weight: 4.5KG
Saddle distance to gear vertex: 36cm
E-BIKE SYSTEM:
Model: Ham
Battery: 2x20Ah/48V lithium battery
Battery removable: yes (Range up to 180km)
Motor: 2*48V 750W
Motor torque: 80Nm+80Nm
Top speed: 48 km/h+
Riding mode: Throttle Mode / Pedal assist mode / Cruise control mode / Push mode
EQUIPMENT:
Display: Color LCD display
Sensors: Speed Sensor
Mechanical gear: Shimano 7-speed
Charger: EU standard 4.0A
Tire: Arisun 20x4.0''
Headlamp: 280 Lux
GEAR & BRAKE:
Brake: Hydraulic disc brakes 180MM
Brake lever: Aluminum alloy brake lever with engine stop switch
Gear lever: SHIMANO Altus 7-speed
Crankset: 48T, 170mm
FRAME:
Frame: 6061 Aluminum alloy
Size: 17 inch
Shock absorber: Front fork shock absorber 100mm + rear spring shock absorber 30mm
PRODUCT INFORMATION:
Maximum Load: 200KG
Suitable Height: 165-185CM
Product weight: (include battery) 42kg
Waterproof level: IP56 (can be used in the rain)
1x multi-tool
1x 4A charger
1x Instruction Manual
2x battery
HANEVEAR is committed to providing simple, dependable, and efficient warranty services. Refer to the warranty terms below for various products and accessories. Note: The warranty period commences on the original date of purchase.
Components
Frame: 1 year
Front Fork: 1 year
Controller: 1 year
Motor: 1 year
Charger: 1 year
Battery: 1 year
LCD Display: 1 year
Chainwheel: 1 year
Freewheel: 1 year
Brake: 1 year
Pedal: 6 months
Tires: 6 months
Seat: 6 months
Free accessories: NO
Notes: the following conditions are not covered by the warranty
The product is out of the warranty period.
The product is lost or stolen.
The product is free or complimentary.
The product is used in inappropriate ways or conditions, including but not limited to: falls, extreme temperatures, water, improper operations.
The product is not in its original state, such as modifications.
The product has been used in combinations with accessories that is not compatible with the product.
Buyers have no sufficient proof of purchase of products.
Unsupported software or firmware has been installed to the product.
When a damage is caused by the customer, the customer is responsible for the costs for the repairs and shipment.
When damage is caused by the customer, the customer is responsible for the costs for the repairs and shipment, including but not limited to: tire punctures caused by sharp objects and collision damage to components.
Customers' personal items are sent to HANEVEAR, instead of the HANEVEAR products.
The product is purchased from an unauthorized re-seller.
