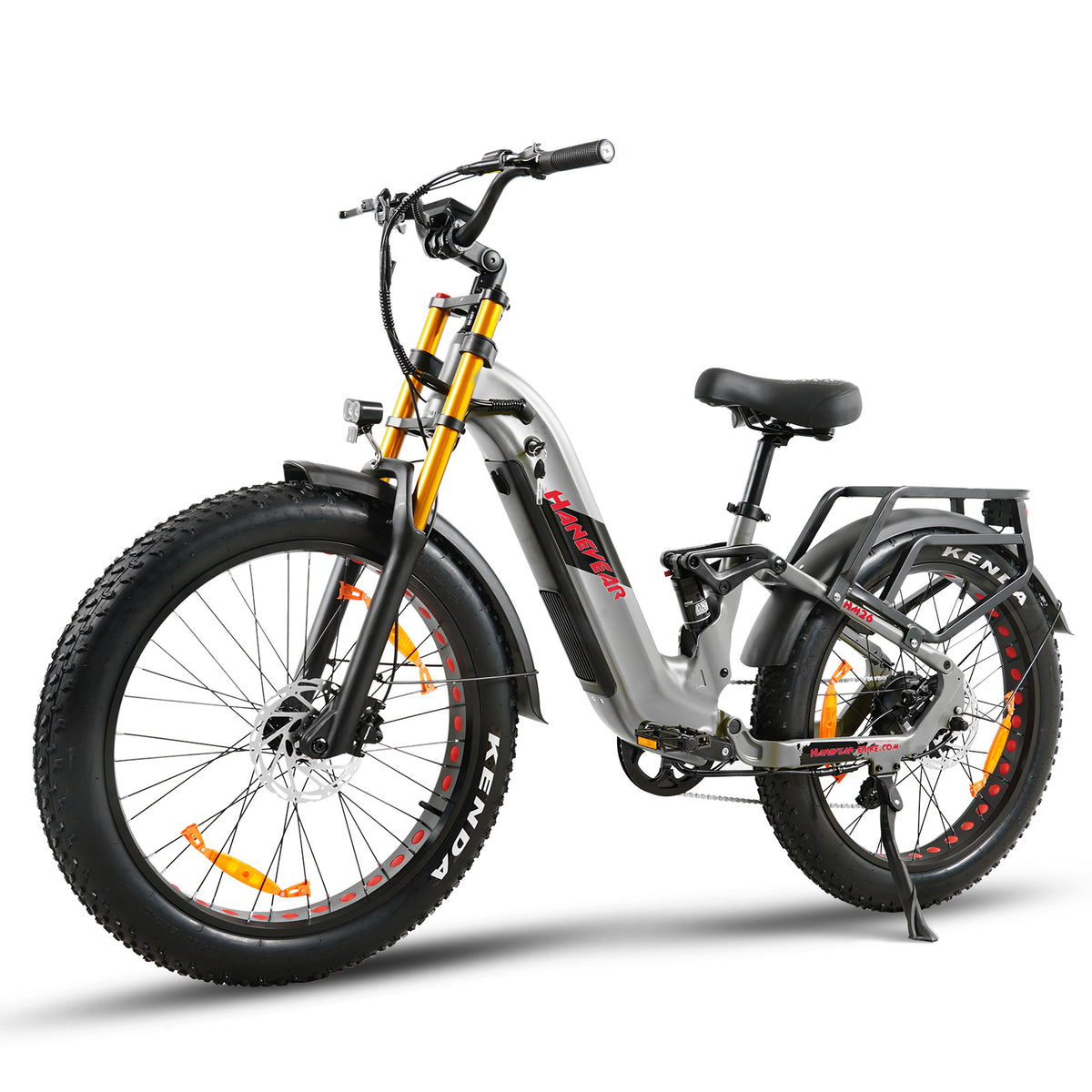

HANEVEAR HM26 Full Suspension 52V 20.8A Electric Mountain Bike

🛞

TIRES 26 × 4.0"

⚡

MOTOR POWER 250W/95NM (Peak 1300W)

📡

SENSOR Torque+Cadence Sensor

🏎️

TOP SPEED 25KM/H

🔋

RANGE 120-150 KM

📦

PAYLOAD CAPABILITY 180KG

HANEVEAR HM26 Full Suspension 52V 20.8A Electric Mountain Bike

€1.799,00; ~~€1.999,00~~; €1.799,00
Unit price: per

Color: Dark Gray

Product variants

Green Type will arrived July 30th - August 5th.

HANEVEAR HM26 Full Suspension 52V 20.8A Electric Mountain Bike

~~€1.999,00~~ €1.799,00

Choose Options

Quantity:

HANEVEAR HM26 Full Suspension 52V 20.8A Electric Mountain Bike

~~€1.999,00~~ €1.799,00

Color: Dark Gray

Product variants

Main Technical

26'' Full Suspension Long Distance E-MTB

Conquer the wild — 250W(peak 1300W) motor, 95N·m torque, full suspension & fat tires for any adventure

With LG 5200 mAh battery capacity, it offers a range of 100-150km on a single charge. It also features BMS battery protection system to safeguard battery safety.

100-150KM	Charger Time
PAS Mode	5-6 H

The HM26 utilize manually adjustable dampened forks and a four-link mechanism.
The rear suspension utilizes DNM AO-6 three-stage adjustable locking pneumatic shocks

DNM® AO-6	4-Link
Rear Absorber	Front Absorber

Monitoring and setting up your real-time speed; recording your riding mileage; adjusting 1-4 levels of the speed; displaying your battery remaining; USB Charging function can be used to power the dying cell phone, providing other setting functions according to your demand.

LCD	Thumb
Color Display	Easy Control

HM26 Features

TEKTRO Hydraulic Brakes

Hydraulic brakes provide superior braking performance and durability. With proper maintenance, there won't be a decline in braking power for 5 years.

StVZO Luminosity Spotlight

20% brighter than LED light. Visibility is improved to guarantee your safety while riding at night.

Integrated Brake Light

The automatic brake light will be activated whenever you use the brake, which can prevent rear-end collisions while riding at night.

KENDA All-terrain Fat Tire

26"x4" Kenda K-shield fat tires provide strong grip and traction on rugged roads. Even on the most challenging terrains and weather conditions, these fat tires can guarantee your safety and offer you an easy and smooth riding experience.

Thumb Throttle

The thumb throttle helps riders start off more effortlessly; the maximum speed when using the throttle is 6 km/h.

Shimano 8-Speed Gear

1-8 level shift gears, allowing you to switch freely on the flat road or steep hills, reducing pedaling and you still are able to ride faster and easier. Shimano 8-speed rear derailleur adjusts your gear effectively and helps you across varied terrains wherever you go.

More Details

48T Crankset

The 48T crankset size is suitable for mountain biking, and it can be easily driven even when the battery is dead.

4A Fast Charger

The 4A charger can charge a battery from 0% to 100% in 5-6 hours.

Sport Saddle

A wide memory-foam saddle distributes weight evenly and helps absorb bumps along the way, so rides stay comfortable at 30 minutes, 60 minutes, and beyond.

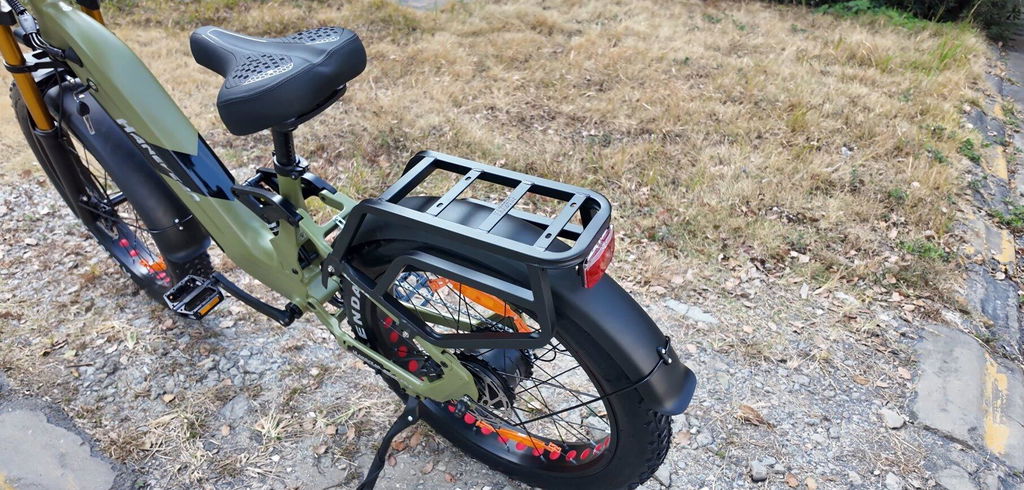

Rear Rack

Thickened tubing rear rack, capable of supporting up to 25KG. Can be expanded to include a rear basket.

Mountain Bike Pedals

Mountain bike pedals with 12 anti-slip studs provide greater stability and prevent skidding.

Adjustable Handlebars

The handlebar angle is adjustable, making it suitable for a wider range of rider heights.

Ergonomic Grip

Sporty silicone handlebars that are comfortable for extended use and wrist-friendly.

Extended Fender

Extended mudguards protect you during every adventure and crossing in muddy conditions.

For More Information

Technical Specifications:

Motor Hub: 52V 250W(peak 1300W), max torque 95Nm
Controller: 25A Current
Battery: 52V, 20.8Ah, LG5200mAh Li-ion Battery
Charger: 4A Fast charger
Display: Features include sensor-based switching, headlight adjustment, gear adjustment, power adjustment, battery percentage.
Sensor: Torque sensor + Speed sensor (1-4 Level)
Start-up Assist Function: The thumb throttle provides 6km/h assist, help riders start on inclines
Throttle Assist: Thumb throttle
Headlight: StVZO LED, IPX6
Pedal Assist Range: 100-150 km
Throttle Range: 90 km
Charging Time: 0-100% 6 Hours

Framesets:

Frame: Aluminum alloy, fully integrated & lockable down tube battery
Brake: TEKTRO® 180mm front and rear Hydraulic disc brakes
Tire: 26*4.0 KENDA off-road tires (K1188)
Rims: Aluminum alloy, 36H
IP Level: IPX6
Shock Absorbers: DNM Air pressure Damping + Adjustable dual suspension forks with 105MM fork
Shift Lever: Shimano SL-M315, 8-Speed, thumb shifter
Chainrings: 48T
Chain: KMC Anti-Rust Chain
Seat Post: Shock-absorbing sports saddle
Pedals: Full aluminum mountain bike pedals (with pegs)

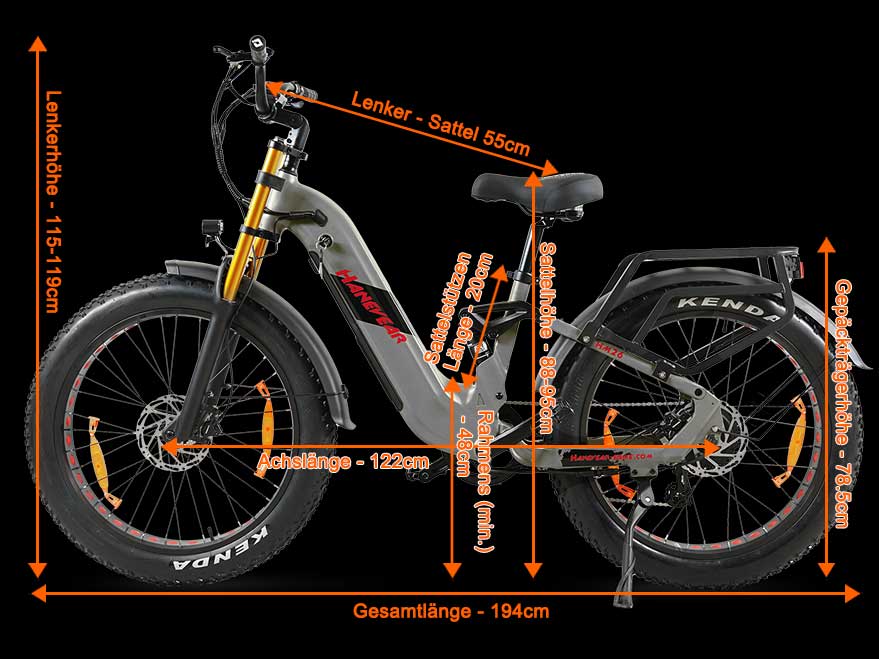

Weight & Speed:

Maximum Load: 150KG
Suitable Height: 165-195CM
Product weight (include battery): 41kg
Standard Speed: 25 KM/H

Total length: 194cm
Wheelbase: 122cm
Handlebar height: 115cm
Saddle height: 88-95cm
Rear rack height : 78.5cm
Seat tube length: 20cm
Step-thru height: 48cm
Handlebar to saddle distance: 55cm
Handlebar length: 70.5cm

Parts covered under warranty:
1. Frame
2. Fork
3. Folding seat tube
4. Seat tube
5. Horizontal tube handlebars
6. Handlebars
7. Seatpost
8. Brakes (excluding brake pads)
9. Lights
10. Bottom bracket
11. Wheel rims
12. Wheel hubs
13. Freewheel
14. Derailleur
15. Gearshift
16. Motor
17. Throttle
18. Controller
19. Wiring harness
20. LCD display (excluding water damage)

This warranty does not cover:
Defects inherent during the normal service life of the product or during its service life
Damage caused by accident, abuse, misuse, abnormal use (including but not limited to stunts, racing, or other activities unrelated to the intended use of the product), improper storage, contact with liquids, moisture, sand, dirt, electrical or abnormal physical impacts, etc.

Careless riding, accidental falls, falls caused by obstacles, and falls caused by children/minors are not covered under warranty.

Defects or damage caused by unauthorized modifications or improper installation.

Scratches, dents, and cosmetic damage caused by human factors, unless caused by HANEVEAR.

Rack number, barcode, and serial number on the product that has been removed, soiled, damaged, altered, or is illegible.

Wearable parts, such as:

1. Tires/inner tubes
2. Brake pads
3. Chain
4. Sprockets
5. Cables and housings, etc.
6. Seat
7. Crankset
8. Pedals

Product defects or damage caused by the use of accessories, products, or peripherals not provided or approved by HANEVEAR.

Defects or damage caused by improper product assembly, testing, operation, maintenance, installation, repair, or adjustment.

Defects or damage caused by external causes such as collisions, fires, floods, lightning strikes, earthquakes, tornadoes, theft, vandalism, or improper use of any power source.
