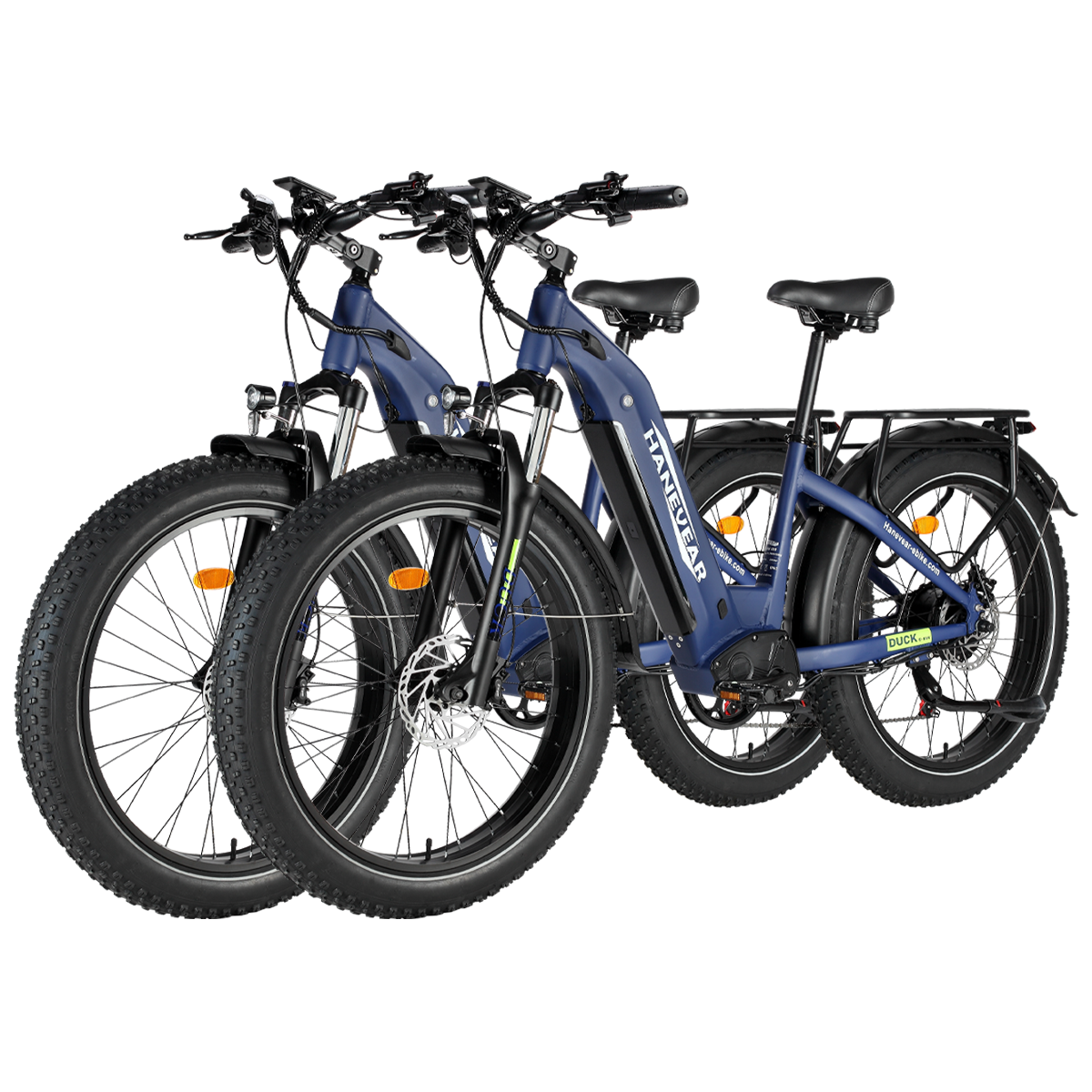

Ebike Bundle - Hanevear DUCK (2 Pack)

E-BIKE SYSTEM:
Model	DUCK Upgrade
Battery	21Ah/48V Battery
Removable battery?	Yes
Max Range	120 km+
Motor	48V 250W
Max Torque	85 Nm
Max Speed	25 km/h
Riding Mode	PAS Mode / Cruise Mode / Push Mode
EQUIPMENT:
Monitor	Color LCD Display
Sensors	Speed Sensor
Mechanical Speed	Shimano 7S
Charger	EU Standard 2,0 A
Fat Tire	CHAOYANG 20x4.0'' With reflective
Headlights	100 Lux (with ’K’ license plate)
SHIFT & BRAKE:
Brake	Hydraulic brakes
Brake lever	Brake power off
Gearshift lever	SHIMANO Altus 7 Speed
Crankset	48T, 170mm
FRAME:
Frame	6061 aluminum alloy
Size	17 inch
Typical	Step-Thru
Bike size:
Max Loading	180KG
Suitable height	160-190CM
Product weight (includ battery)	38kg
Waterproof	IP56 (lifetime waterproof, can be used in the rain)

Total length	196cm
Axle length	120cm
Saddle Max to Min	86-100cm
Handlebar height adjustable	107-115cm
Rear rack height	80cm
Handlebar to saddle	70cm
Handlebar width	70cm
Battery weight	5.2kg
Total weight	38kg

Installation tools

Instructions

Throttle (not installed)

Charger

Key*2 (handlebar)

Q: What type of terrain can I ride on with fat tires?
A: Fat tire bikes are designed primarily for all-terrain use and can handle various terrains, including street, snow, sand, dirt trails, and rough roads.

Q: How much does the DUCK weigh?
A: The DUCK weighs 38.6KG with the battery installed. (Battery weight is 5.2KG)

Q: Does DUCK include a throttle?
A: There is no throttle installed. If the customer needs throttle assistance, they can install the throttle themselves. (Installing a throttle does not comply with EU law)

Q: Is the DUCK ebike waterproof?
A: DUCK are built to the IPX4 water-resistant standard. IPX4 means that your bike is resistant to water splashes from any direction. This means it’s OK to ride your ebike in light rain. It won’t be harmed by spray from a wet road or raindrops. Your ebike is not intended to be exposed to prolonged rain, be submerged, or subjected to a pressurized spray. Don’t use a pressure washer or sprayer to clean your ebike.

Q: What kind of warranty is included with Hanevear ebikes?
A: All Hanevear-branded frames, framesets, components, and batteries come with a 1-year warranty. Learn more about the Hanevear warranty.
