E-BIKE SYSTEM: |
|
| Model | H6-Light |
| Battery | 14.5Ah/48V lithium battery |
| Battery removable | yes |
| Range up to | 120 km+ |
| Motor | 48V 250W |
| Motor torque | 55 Nm |
| Top speed | 25 km/h(The speed limit cannot be removed.) |
| Riding mode | Pedal assist mode / Cruise control mode / Push mode |
EQUIPMENT: |
|
| Display | Color LCD display |
| Sensors | Torque sensors |
| Mechanical gear | Shimano 7-speed |
| Charger | EU standard 2.0A |
| Tire | CHAOYANG 20x3.0'' |
| Headlamp | 100 Lux (With 'K' mark) |
GEAR & BRAKE: |
|
| Brake | Mechanical disc brake |
| Brake lever | Aluminum alloy brake lever with engine stop switch |
| Gear lever | SHIMANO Altus 7-speed |
| Crankset | Torque integration, 48T, 170mm |
FRAME: |
|
| Frame | 6061 Aluminum alloy |
| Size | 16 inch |
| Typical | Low step, foldable |
PRODUCT INFORMATION: |
|
| Maximum Load | 130KG |
| Suitable Height | 160-190CM |
| Product weight (include battery) | 28kg |
| Waterproof level | IP54 (can be used in the rain) |
| Total length | 168cm |
| Axle length | 113cm |
| Saddle Max to Min | 82-101cm |
| Handlebar height adjustable | 106-116cm |
| Rear rack height | 62cm |
| Handlebar to saddle | 68cm |
| Handlebar width | 63cm |
| Battery weight | 4kg |
| Total weight | 28kg |
| Folding size | 89*44*72cm |
| Instruction manual |
| Charger |
| Folding pedal |
| Throttle (not installed) |
| Cup holder |
| Installation tool |
| Rearview Mirror |
| Front and rear reflectors |
| Bell |
€ 999 Only👍
€ 1249
€ 1399
48V/14.5Ah
Samsung 48V/24Ah
48V/13.5Ah
28 kg👍
36 kg
33.2 kg
696 Wh capacity and 120 km range.
Hanevear promises you a 1-year free battery replacement service.
Enjoy long journeys without worrying about range!
120KM+ |
BMS |
| PAS Mode | Battery Safety |
| CADENCE SENSOR | TORQUE SENSOR |
| More affordable | More expensive (typically on higher-end e-bikes) |
| Consistent power based on pedaling speed | Varies based on pedaling force |
| Can feel slightly jerky, especially on hills | More natural and responsive |
| Riders prioritizing affordability and a predictable riding experience | Riders seeking a natural, responsive experience and maximum control |
Max Torque |
Max Speed |
| 55N.m | 25km/h |
130KG |
30CM |
| MAX Loading | Crossable Height |
 |
Total bike Weight: 28KG | Folded Size: 89*44*71CM | Folds in 3 seconds
1-PAS gear: 30% power; top speed 25 km/h 2-PAS gear: 60% power; top speed 25 km/h 3-PAS gear: 100% power; top speed 25 km/h
Featuring a Shimano 7-speed gear system and a rear derailleur protector, the H6-Light ensures a smooth and reliable ride. The protector shields against damage and chain slippage, while the gear system offers versatile options for tackling any terrain with ease.
The three-dimensional appearance, durable material and ergonomic design make this H6-Light saddle dazzling. The material can not only prevent erosion by rain, but also will not make you tired after long-term use.
The H6-Light comes with foldable pedals, making it easy to carry in the trunk of a car, apartments and on public transportation.
The H6-Light electric bike battery is removable and rechargeable. The removable battery function protects the safety of the battery and prevents theft.
This 3.0 Chaoyang tire has excellent thickness, wear resistance and anti-skid performance. In the test, it can be used continuously for more than 3,000 hours.
I'm absolutely thrilled with this bike.

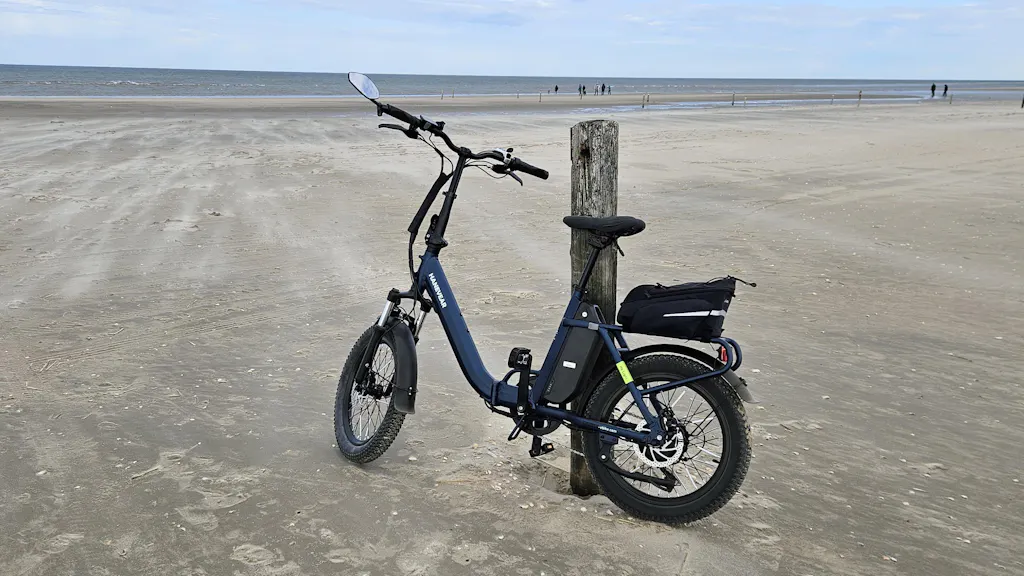

It's a lightweight powerhouse that accompanies us in our camper. The whole family has a blast riding it.
The delivery was very good.
The product is very good so far.
At the moment, there are no suggestions for improvement.
I’ve already purchased the second bike and I’m very satisfied.
The display on the second bike was damaged during transport, but the issue was resolved immediately and a new display was sent—perfect!
Emails are answered very quickly.
I’m very satisfied and can definitely recommend this bike.
Lieferzeit wie angegeben.
Nach 40 km nichts klappert.
Sieht nach guter Qualität aus.
Chat hat auf Deutsch geantwortet und meine Fragen beantwortet.
Jetzt müssen erst mal km drauf um mehr zu sagen.
Na mój pierwszy składak elektryczny, po przeczytaniu wielu opinii i obejrzeniu mnóstwa recenzji na youtube, z pełna świadomością ale też i zagadką, wybrałem markę Hanevear i nie żałuję. Rower w oferowanej cenie uważam, że wygrywa z konkurencją. Oczywiście ma swoje braki jak np. brak tylnego zawieszenia czy hamulców hydraulicznych (je akurat można zamontować we własnym zakresie). Game changerem w tej cenie jest czujnik momentu obrotowego (torque sensor), rower mimo mojej sporej wagi (100kg) odpycha się z lekkością i łatwością, aż chciałoby się jechać szybciej niż te 25km/h. Na razie nie nabiłem wielu km ze względu na pogodę ale jazda jest bardzo komfortowa i łatwa, hamulce działają bez zastrzeżeń, wszystko działa na prawdę ok. Rower oczywiście swoje waży przy masie 28kg, (przyszli kupujący powinni mieć to na uwadze) ale w tej kwestii rower ma pewien szczegół: uchwyt do przenoszenia czy dźwigania. Naprawdę możliwość dźwignięcia go w łatwy sposób ułatwia poradzenie sobie z niemałą wagą. Rower polecam, niewiadomą pozostaje serwis gwarancyjny i usterkowość roweru. Mam nadzieje, ze nie będę musiał korzystać z serwisu i H6-Light będzie działał bezbłędnie.
Also das H6-S Light ist ein tolles Fahrrad und ich wusste nicht was man verbessern könnte. Da ich noch ein H6-S besitze hätte ich da ein paar Anregungen fürs H6 -S.
1. auch ein Drehmoment Sensor verbauen
2. Auch umrüsten auf 20x3 und nicht 20x4
3. StVO konforme Beleuchtung und StVO konforme Ausstattung.
An sonsten sind das h6-light und H6-S 2 tolle Klappräder
